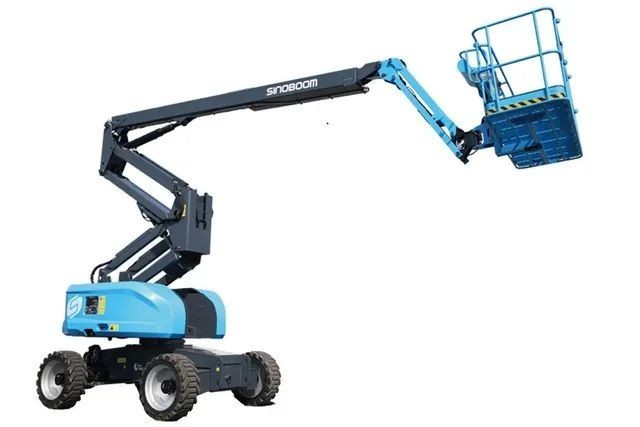

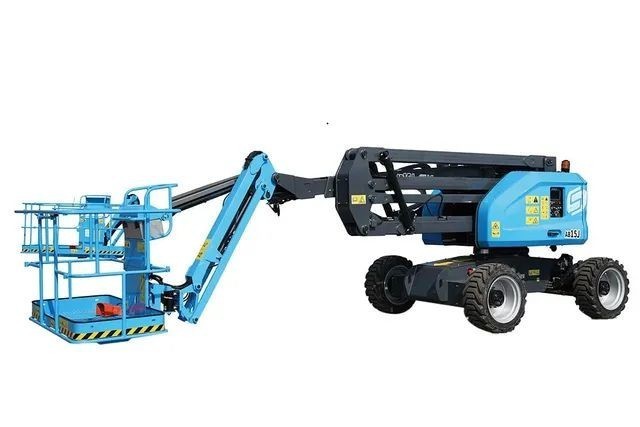

The Sinoboom AB15J is a precision-engineered, engine-powered articulating boom lift that delivers efficient performance and a working height of up to 16.7 meters. Its compact width and zero tail swing allow it to maneuver easily in tight or confined areas. The platform can be raised or lowered independently of the secondary arm, increasing operational flexibility. A simple linkage system combined with hydraulic leveling ensures stable and dependable functionality. With three joysticks featuring variable proportional controls, the lift provides smooth and precise operation. Suitable for both indoor and outdoor environments, the AB15J is ideal for high-reach construction, maintenance, and facility tasks.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces

• Fast, Responsive Height Adjustments

• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep

• Oscillating function

• 7-in display screen

• 4WD× 2WS

• Proportional control with 3 joysticks

• Automotive-grade sleeves for all pipes

• Hydraulic platform leveling

• Weighing system

Price: AED 203000

Request for quote: +971525384269
