AED203,000
Negotiable
Listing Details

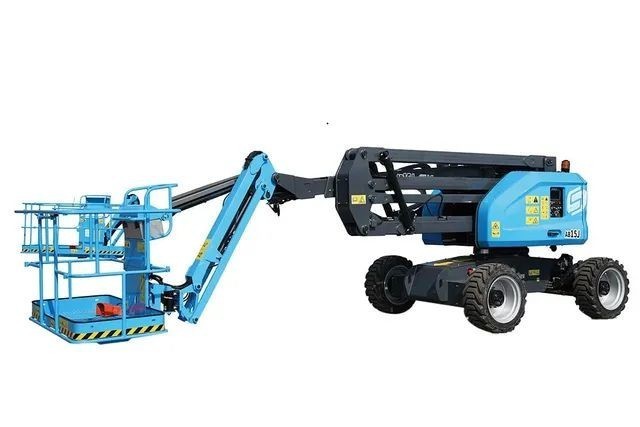

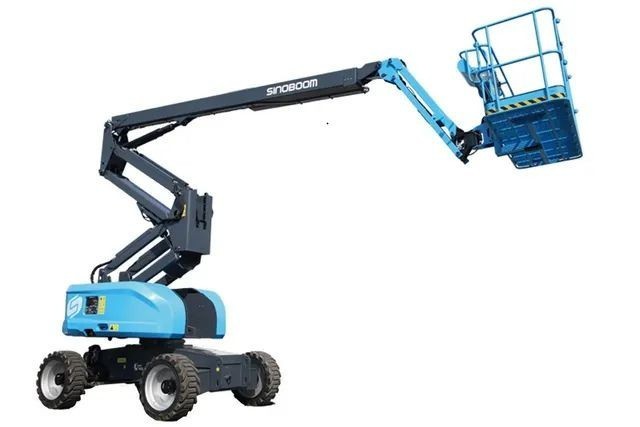

With a working height of up to 16.7 meters, the Sinoboom AB15J articulating boom lift delivers both power and precision. Its narrow frame and zero tail swing provide excellent maneuverability in tight or restricted areas. The platform’s movement is independent of the secondary arm, improving flexibility on the job. Designed with a simple linkage mechanism and hydraulic self-leveling, the machine ensures consistent, reliable operation. Featuring three joysticks with variable proportional controls, it allows for accurate and responsive movements. Built for indoor and outdoor tasks alike, the AB15J is perfect for construction sites, facility maintenance, and general high-access work.
Highlights
-
Ultra-Compact Wheelbase for Tight Spaces
-
Fast, Responsive Height Adjustments
-
Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
-
Narrow width with zero tail sweep
-
Oscillating function
-
7-in display screen
-
4WD× 2WS
-
Proportional control with 3 joysticks
-
Automotive-grade sleeves for all pipes
-
Hydraulic platform leveling
-
Weighing system
Price: AED 203000
Request for quote: +971525384269
