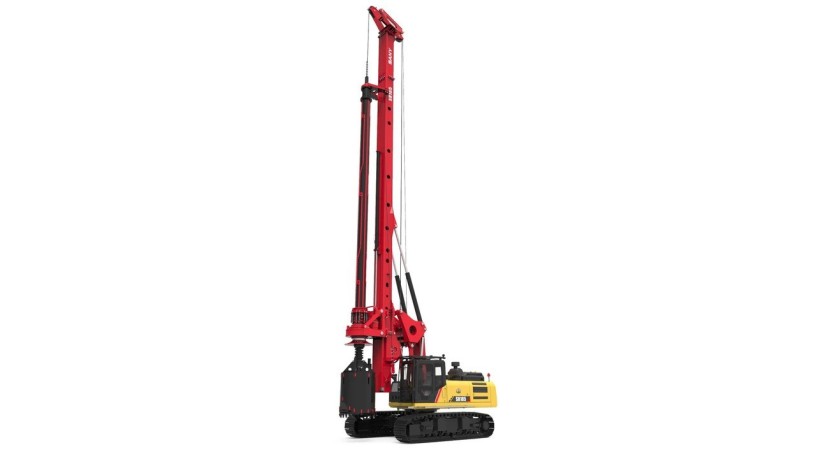

Features

Efficient and Flexible
They are widely used in civil engineering because of their high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operating efficiency, and small diameter and deep borehole construction.

Distinct Chassis
For rotary drilling rigs, a telescopic enormous widening chassis and roller type great diameter slewing bearings provide outstanding stability for drilling deep boreholes.
Solidly powered, imported large displacement EFI engine that is economical and energy-efficient. It makes use of real-time power distribution modification, power optimization control technology, fast reaction times, improved fuel efficiency, and energy savings.

Better Reliability
The mast has a box structure that is resistant to fatigue and torsion, the sixth-generation Kelly bar has a stronger block ring and better material, and the overall strength has grown.

Parameters

Main Chassis

Base Engine - ISUZU 6HK1

Engine Power - 212/2000kW/rpm

Emission Regulation - China Stage III

Rotary Drive

Rated Speed - 5~34rpm

Rated Output Torque - 190kN·m

Pile

Max. Pile Diameter - 1800mm

Max. Pile Depth - 59/47m

Crowd System

Crowd Force - 180kN

Stroke - 4200mm

Line Pull - 180kN

Overall Machine

Overall Height - 21040mm

Operating Weight - 63T

Transport Width - 3210mm

Transport Height - 3560mm

Main Winch

Lifting Capacity  -185kN

Max. Line Speed - 75m/min

Rope Diameter - 28mm

Request for quote: +971525384269

Price: AED1362000
