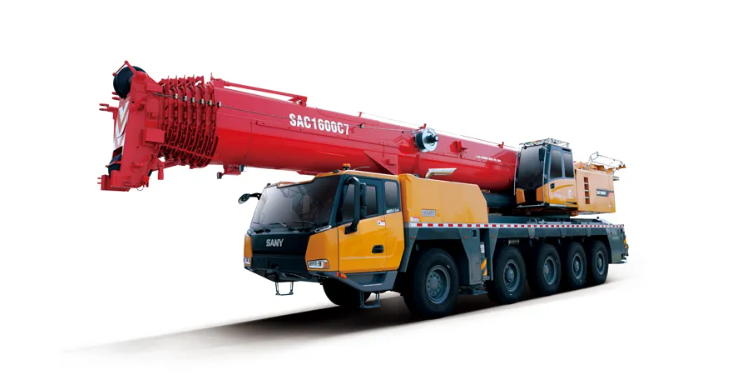

The SAC1600C7 redefines power and precision in the all-terrain crane category.
Top Highlights:

• Max lift: 160T

• Boom length: 74.8m

• Max working height: 103m

Parameters

Operation

Counterweight - 53T

Max. Lifting Capacity - 160T

Max. Boom Length - 74.8m

Max. Jib Length - 34m

Max. Lifting Height - 103m

Max. Lifting Moment - 5174kN·m

Traveling

Available Districts -  Outside Europe & USA

Engine Model (Emission Standard) -DF Cummins QSZ13-C525-30 (EU Stage ⅢA)

Max. Gradeability - 46%

Max. Traveling Speed - 80km/h

Wheel Formula - 10x 6 x10

Features

• Compact chassis features all wheel steering and better suspension, adaptable for various jobsites.

• Variable jib configurations and counterweight combinations. We always provide the most economical solution for different lifting projects.

• The single-cylinder pin system provides variable boom combinations for variable constructions.

• The cranes are capable of traveling with counterweight at jobsites, requiring less transport trailers.
