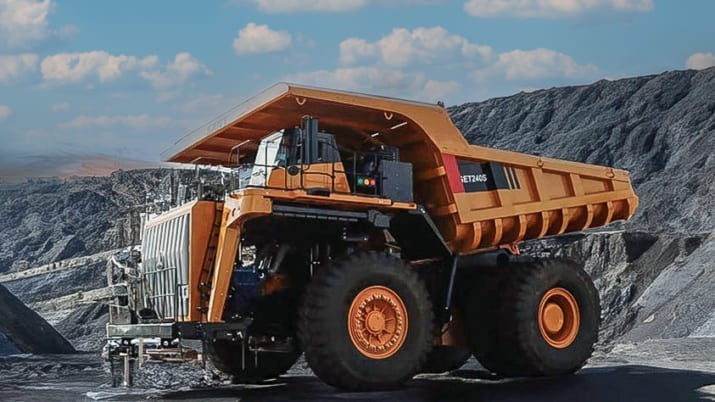

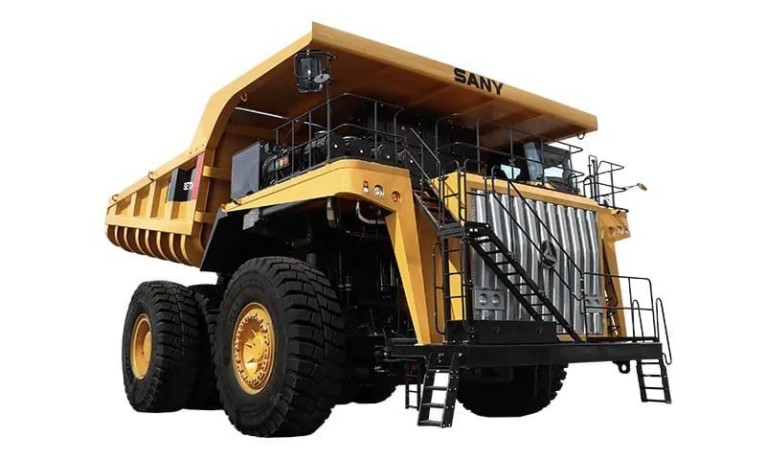

For challenging mining tasks, the SANY SET240S Diesel Electric Truck delivers superior hauling performance. Its diesel-electric system reduces fuel use while maintaining high power. With rugged construction, it withstands demanding work environments. Designed for efficiency, it enhances productivity and lowers long-term costs.

Features-

Steering: Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.

Electric Drive System: The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.

Parameters:

Net Weight: 170T
Engine Model: Weichai WP17
Capacity (Struck/Heaped): 105/147m³
Size: 14900*8200*7050mm
Left/Right Hand Drive: Left/Right
Total Power: ≥2091kW
Displacement: 16.72L
Maximum Torque: 3000NM
Max. Gradeability: 30%
Min. Turning Radius: 14500mm
Number/Type of Cylinders: 8/V shape,turbocharged
Lubrication System: Automatic lubrication system
Automatic/Manual: Automatic
Tyre: 40.00R57
Load Weight: 220T
