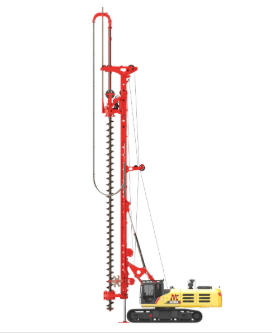

The SANY SR285R-MIII Rotary Drilling Rig stands out as a preferred model for soil and rock construction tasks. Its advanced motion system provides smooth and efficient compound movements, with torque and rotation adjustments suitable for varying geological conditions. Collaboratively engineered engines with top global manufacturers meet Tier IV/III emission norms while delivering dependable and energy-saving power. With a 15m extra-long stroke, it’s perfect for rapid crowding and pulling in beach, pebble, and backfill formations. The inter-lock Kelly bar’s real-time lock location display helps operators avoid mishaps, while the wire rope remains tensioned throughout operation, extending durability. The HD touch screen offers quick refresh rates and smooth animations, and systematic lubrication ensures consistent performance.

Parameters

CFA Mode

• Crowd Force- /kN

• Stroke- 18300mm

• Overall Height- 33075mm

• Max. Pile Diameter- 1200mm

• Max. Pile Depth- 25.5m

• Operating Weight- 108T

• Line Pull- 1000kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Standard Mode

• Crowd Force- 260kN

• Stroke- 17100mm

• Overall Height- 25470mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 94/61m

• Operating Weight- 105T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Main Chassis

• Base Engine- 6WG1

• Engine Power- 300/1800kW/rpm

• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 260kN

• Stroke- 4600mm

• Overall Height- 11655~13280mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 50m

• Operating Weight- 96T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Overall Machine

• Transport Width- 3475mm

• Transport Height- 3625mm

Main Winch

• Lifting Capacity- 330kN

• Max. Line Speed- 70m/min

• Rope Diameter- 36mm

Price: 311000 AED
