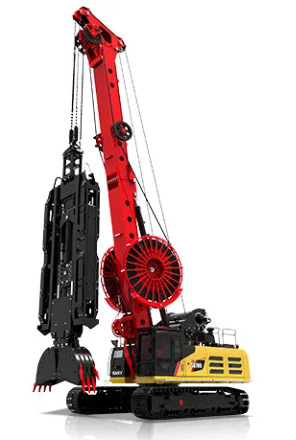

Designed for tough underground environments, the SANY SR235-S-DW Kelly Guided Grab’s robust working device delivers maximum impact force and can effectively operate in weathered rock formations with pressure up to 10MPa. The bucket’s rapid opening and closing in only 9 seconds results in higher soil catching, slag collecting, and unloading efficiency. A synchronous winch system ensures optimal speed, while gyroscope-assisted deviation detection dynamically corrects misalignments to maintain perpendicular grooves with a tolerance of 1‰.

Parameters

Main Chassis

• Base Engine- 6UZ1

• Engine Power- 257/2000kW/rpm

• Emission Regulation- China Stage III

Slot

• Groove Width- 500-1200mm

• Groove Depth- 35m

Overall Machine

• Overall Height- 22870mm

• Operating Weight- 83T

• Transport Width- 3540mm

• Transport Height- 3660mm

Working Equipment

• Max. Closing Force- 128T

• Weight- 2.5-9T

• Open & Close Bucket Time- 5/8S

Main Winch

• Lifting Capacity- 235kN

• Max. Line Speed- 32m/min

• Wire Rope Diameter- 70mm

Price: 2201000 AED

For More Information

Call us on: +971 525384269
