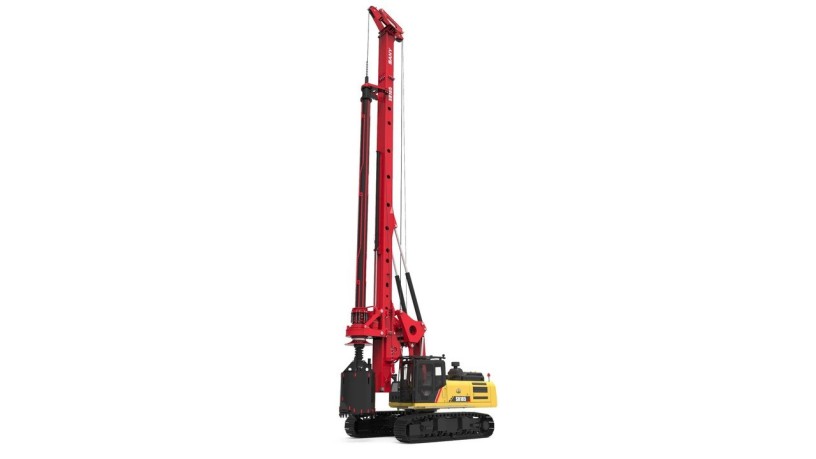

characteristics

Adaptable and efficient
Their high operational efficiency, small diameter and deep borehole construction, tall verticality of completed boreholes, and high main hoist lifting up and down speed make them popular in civil engineering.

Special Chassis
When drilling deep boreholes, rotary drilling rigs with telescopic enormous widening chassis and roller type big diameter slewing bearings provide outstanding stability.
stable, energy-efficient, and reasonably priced imported large displacement EFI engine with real-time power distribution adjustment, power optimization control technology, fast reaction time, improved fuel economy, and energy savings.
Excellent Reliability
The mast of the sixth-generation Kelly bar has a box structure that is resistant to fatigue and torsion, the material is better, and the block ring is stronger. The overall strength has also risen.

Parameters

Main Chassis

Base Engine - ISUZU 6HK1

Engine Power - 212/2000kW/rpm

Emission Regulation - China Stage III

Rotary Drive

Rated Speed - 5~34rpm

Rated Output Torque - 190kN·m

Pile

Max. Pile Diameter - 1800mm

Max. Pile Depth - 59/47m

Crowd System

Crowd Force - 180kN

Stroke - 4200mm

Line Pull - 180kN

Overall Machine

Overall Height - 21040mm

Operating Weight - 63T

Transport Width - 3210mm

Transport Height - 3560mm

Main Winch

Lifting Capacity  -185kN

Max. Line Speed - 75m/min

Rope Diameter - 28mm

Request for quote: +971525384269

Price: AED1362000
