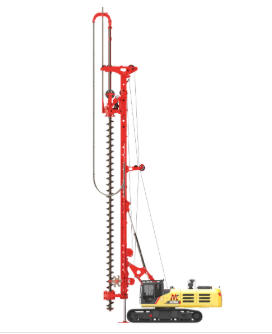

The SANY SR285R-MIII Rotary Drilling Rig is a preferred solution in soil and rock construction, offering smooth compound motion with precise torque and speed adjustments. Designed for diverse geological and construction needs, it’s powered by engines developed with world-class partners to meet Tier IV/III emission standards, ensuring efficient and reliable operation. Its 15m extra-long stroke enables fast crowding and pulling, suitable for beach, pebble, and backfill formations. Real-time lock position feedback prevents operational errors, while the wire rope stays tensioned for extended life. The HD touch screen with 3ms refresh rate delivers seamless visuals, and regular lubrication ensures optimal performance.

Parameters

CFA Mode

• Crowd Force- /kN

• Stroke- 18300mm

• Overall Height- 33075mm

• Max. Pile Diameter- 1200mm

• Max. Pile Depth- 25.5m

• Operating Weight- 108T

• Line Pull- 1000kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Standard Mode

• Crowd Force- 260kN

• Stroke- 17100mm

• Overall Height- 25470mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 94/61m

• Operating Weight- 105T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Main Chassis

• Base Engine- 6WG1

• Engine Power- 300/1800kW/rpm

• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 260kN

• Stroke- 4600mm

• Overall Height- 11655~13280mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 50m

• Operating Weight- 96T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Overall Machine

• Transport Width- 3475mm

• Transport Height- 3625mm

Main Winch

• Lifting Capacity- 330kN

• Max. Line Speed- 70m/min

• Rope Diameter- 36mm

Price: 311000 AED

For More Information

Call us on: +971 525384269
