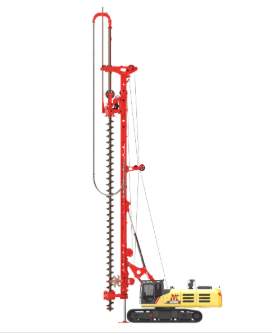

Engineered for soil and rock construction, the SANY SR285R-MIII Rotary Drilling Rig excels in smooth compound movements and adjustable torque and rotary speed, adapting to diverse site conditions. Its engines, co-developed with top global partners, meet stringent Tier IV/III emission rules, offering stable and fuel-efficient performance. The 15-meter extra-long stroke facilitates rapid crowding and pulling, suitable for challenging beach, pebble, or backfill projects. The inter-lock Kelly bar displays lock position in real-time, reducing risks during operations. Wire rope tension is maintained throughout, ensuring longer service life. Operators benefit from an HD touch screen with a 3ms refresh rate and fluid animations, while scheduled lubrication keeps maintenance simple and efficient.

Parameters

CFA Mode

• Crowd Force- /kN

• Stroke- 18300mm

• Overall Height- 33075mm

• Max. Pile Diameter- 1200mm

• Max. Pile Depth- 25.5m

• Operating Weight- 108T

• Line Pull- 1000kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Standard Mode

• Crowd Force- 260kN

• Stroke- 17100mm

• Overall Height- 25470mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 94/61m

• Operating Weight- 105T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Main Chassis

• Base Engine- 6WG1

• Engine Power- 300/1800kW/rpm

• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 260kN

• Stroke- 4600mm

• Overall Height- 11655~13280mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 50m

• Operating Weight- 96T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Overall Machine

• Transport Width- 3475mm

• Transport Height- 3625mm

Main Winch

• Lifting Capacity- 330kN

• Max. Line Speed- 70m/min

• Rope Diameter- 36mm

Price: 311000 AED
