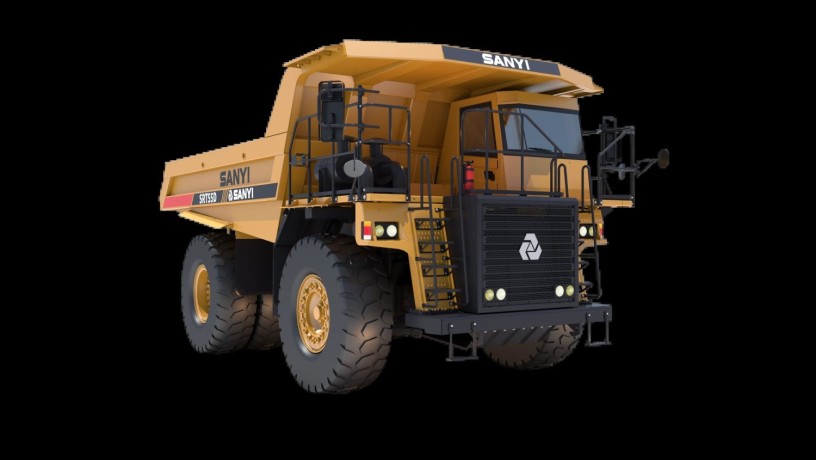

Characteristics:

Visibility of the Operator

For the best view, use a panoramic windscreen.

With a safer mirror arrangement, the compact construction eliminates blind zones by two meters.

Reliable Direction

Articulated bearings can tolerate tension and bumps.

Enhancements in Hydraulics

Compared to rivals with separate functional components, the temperature remains lower.

Improved Turning

Maneuvrability is enhanced by greater angle.

Technology for Suspensions

The patented design prolongs life, lowers wear, and smoothes vibration by 20%.

Parameters

Automatic/Manual - Automatic

Axle   -

Capacity (Struck/Heaped) - 26/35m³

Displacement - 16.1L

Engine Model - Volvo TAD1643VE-B

Gearbox Type - Avitec H6620AR

Left/Right Hand Drive - Left/Right

Load Weight - 55T

Lubrication System - Optional automatic lubrication

Max. Gradeability - 30%

Maximum Torque - 3260NM

Min. Turning Radius - 9540mm

Net Weight - 40T

Number/Type of Cylinders - 6,straight type

Size - 9155x5400x4505mm

Total Power - 565kW

Tyre - 24.00R35/E4

Request for quote: +971525384269

Price: AED1465000
