AED203,000
Negotiable
Listing Details

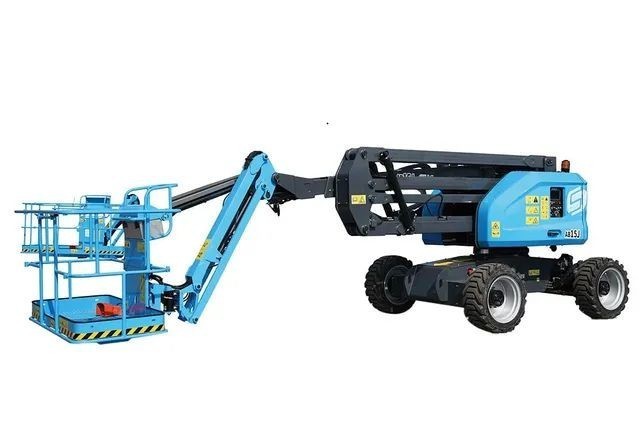

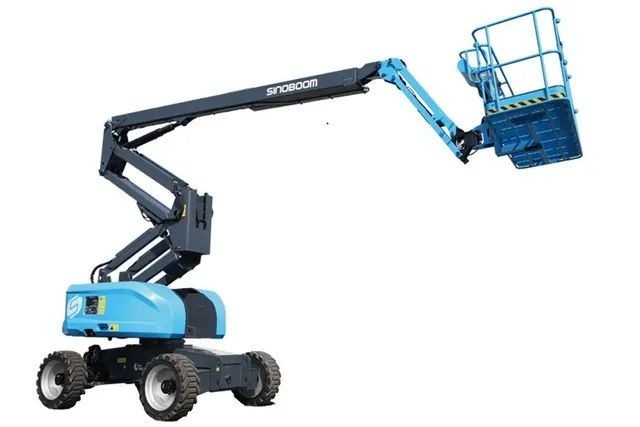

The Sinoboom AB15J is a robust, engine-powered articulating boom lift designed for optimal precision and efficiency, offering a maximum working height of 16.7 meters. Its compact width and zero tail swing make it well-suited for navigating confined spaces. The platform can be lifted or lowered without adjusting the secondary boom arm, streamlining operation. A straightforward linkage system and hydraulic auto-leveling contribute to its dependable, stable performance. With three joysticks featuring variable proportional control, the AB15J offers smooth and accurate maneuvering. Built for both indoor and outdoor use, it’s ideal for high-reach tasks in construction, facility upkeep, and general maintenance.
Highlights
-
Ultra-Compact Wheelbase for Tight Spaces
-
Fast, Responsive Height Adjustments
-
Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
-
Narrow width with zero tail sweep
-
Oscillating function
-
7-in display screen
-
4WD× 2WS
-
Proportional control with 3 joysticks
-
Automotive-grade sleeves for all pipes
-
Hydraulic platform leveling
-
Weighing system
Price: AED 203000
Request for quote: +971525384269
