Qualities

Effective and Adaptable
Due to their high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operating efficiency, and small diameter and deep borehole construction, they are widely utilized in civil engineering.

Unique Chassis
Roller type big diameter slewing bearings and a telescopic huge widening chassis for rotary drilling rigs ensure exceptional stability when digging deep boreholes.

Cost-effective and energy-efficient
solidly powered imported large displacement EFI engine that uses power optimization control technology, real-time power distribution adjustment, quick response time, increased fuel efficiency, and energy savings.

Superior Dependability
The sixth-generation Kelly bar uses improved material and a stronger block ring; the mast has a box structure that is robust against torsion and fatigue; and the total strength increased.

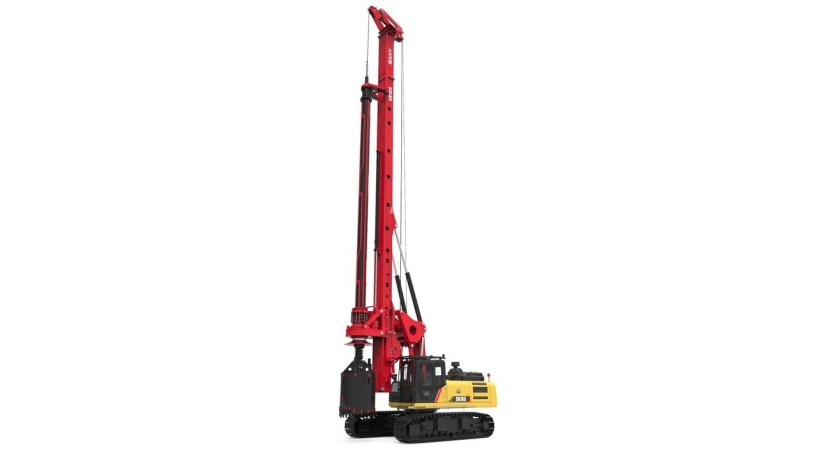

Parameters

Main Chassis

Base Engine - ISUZU 6HK1

Engine Power - 212/2000kW/rpm

Emission Regulation - China Stage III

Rotary Drive

Rated Speed - 5~34rpm

Rated Output Torque - 190kN·m

Pile

Max. Pile Diameter - 1800mm

Max. Pile Depth - 59/47m

Crowd System

Crowd Force - 180kN

Stroke - 4200mm

Line Pull - 180kN

Overall Machine

Overall Height - 21040mm

Operating Weight - 63T

Transport Width - 3210mm

Transport Height - 3560mm

Main Winch

Lifting Capacity  -185kN

Max. Line Speed - 75m/min

Rope Diameter - 28mm

Request for quote: +971525384269

Price: AED1362000
