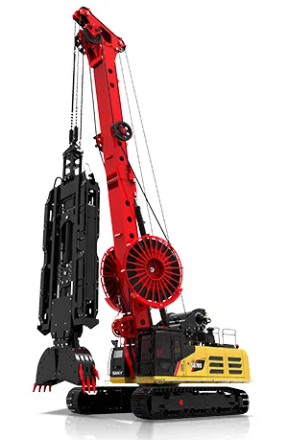

The SANY SR235-S-DW Kelly Guided Grab features a heavy-duty working device with exceptional weight and maximum impact power, suitable for deployment in heavily weathered rock strata up to 10MPa. The bucket’s opening and closing cycles are completed in just 9 seconds, significantly enhancing the efficiency of soil gathering, debris collection, and unloading operations. Its winch utilizes cutting-edge synchronous confluence technology, enabling the fastest operational speed. Real-time gyroscope-based deviation correction ensures the gantry push plate maintains perpendicular alignment with an accuracy of up to 1‰.

Parameters

Main Chassis

• Base Engine- 6UZ1

• Engine Power- 257/2000kW/rpm

• Emission Regulation- China Stage III

Slot

• Groove Width- 500-1200mm

• Groove Depth- 35m

Overall Machine

• Overall Height- 22870mm

• Operating Weight- 83T

• Transport Width- 3540mm

• Transport Height- 3660mm

Working Equipment

• Max. Closing Force- 128T

• Weight- 2.5-9T

• Open & Close Bucket Time- 5/8S

Main Winch

• Lifting Capacity- 235kN

• Max. Line Speed- 32m/min

• Wire Rope Diameter- 70mm

Price: 2201000 AED

For More Information

Call us on: +971 525384269
