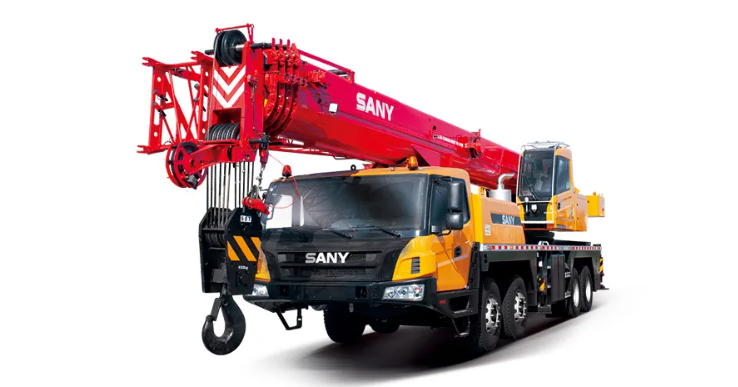

Designed for demanding operations, the STC500T5 offers a 50T load capacity, ensuring efficient handling of heavy materials. Its 44.5m boom and 61m lifting height make it the perfect solution for projects requiring both strength and reach.

• Technical specification

• Max. Lifting Capacity - 50T

• Max. Lifting Height - 61m

• Max. Lifting Moment - 2058kN·m

• Max. Boom Length - 44.5m

• Max. Jib Length - 16m

• Counterweight - 4.8T

• Engine Model (Emission Standard) - DF Cummins ISLe34030 (Euro Ⅲ)

• Max. Traveling Speed - 85km/h

• Wheel Formula - 8 × 4 × 4

• Max. Gradeability - 45%

• Available Districts - LHD area

•

•

•

Features

Smart Hydraulics

• Larger flow ensures higher efficiency, enabling higher speed of wire rope reeling. Shunted mode of independently controlled combined motions realizes higher stability under simultaneous vibration-free luffing and hoisting movements.

Double Pump Intelligent Flow Distribution System

• The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level. Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.

High-performance Chassis

• Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.

Smart Control System

• CAN BUS system:
  Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and fast-responsive.

• Fault diagnosis system:
  Operating device with intelligent controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.

• SANY load moment indicator system protects against overloading, release, and over-winding.

Electrical Control

• Simple harness and steady signal transmission ensures real-time auto monitoring of operation conditions.
