Features

Flexible and Effective
They have a high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operating efficiency, and are widely employed in civil engineering for tiny diameter and deep borehole construction.

Particular Chassis

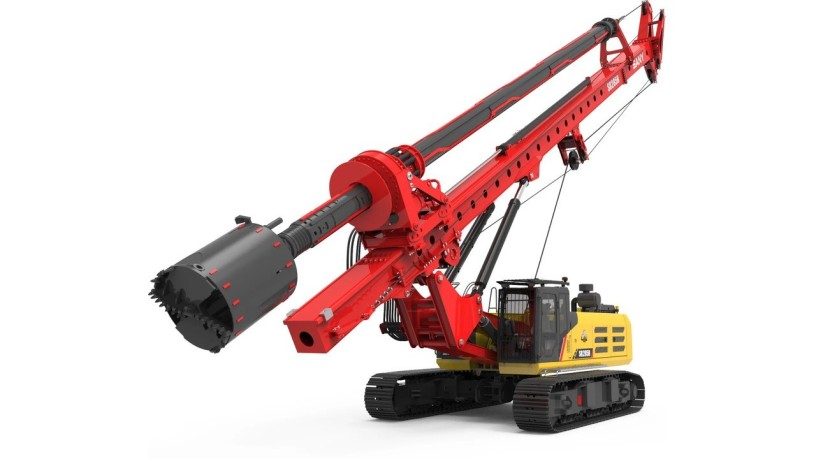

For rotary drilling rigs, telescopic huge widening chassis with roller type large diameter slewing bearings provide exceptional stability for digging deep boreholes.
Energy-efficient and cost-effective
Solid power, real-time power distribution adjustment, power optimization control technology, quick response time, increased fuel efficiency, and energy savings are all features of this imported large displacement EFI engine.

Parameters

Main Chassis

Base Engine - Isuzu 6WG1

Engine Power - 300/1800kW/rpm

Emission Regulation - China Stage Ⅲ

Rotary Drive

Rated Speed - 5~24rpm

Rated Output Torque - 285kN·m

Pile

Max. Pile Diameter - 2300mm

Max. Pile Depth - 94/61m

Crowd System

Crowd Force - 260kN

Stroke - 6000mm

Line Pull - 335kN

Overall Machine

Overall Height - 25425mm

Operating Weight - 100T

Transport Width - 3490mm

Transport Height - 3690mm

Main Winch

Lifting Capacity - 330kN

Max. Line Speed - 72m/min

Rope Diameter - 36mm

Request for quote: +971525384269

Price: AED3328000
