Qualities

Small Design

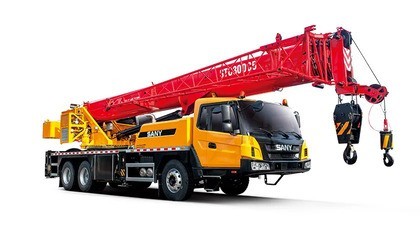

The three-axle cranes have great flexibility and quick transfer times, making them suitable for a variety of urban or small job sites.

Two Pumps System for Intelligent Flow Distribution

Effective flow distribution is achieved by the electro-hydraulic control system, which is also energy-efficient, environmentally benign, and responsive to combined motions and minor impact shocks. Accurate management: Min, great inching performance. A single rope can move at a steady 1.2 m/min and min. With a slewing sound speed of 0.1°/s, a precise mm level raise is achieved. Smooth start and stop thanks to integrated slewing buffer control, which combines free swing, sequential braking, and a boost buffer.

Superior Performance Chassis

200,000 riding fatigue tests have validated the innovative structural frame's exceptional reliability.

Parameters

Operation

Max. Lifting Capacity - 30T

Max. Lifting Height - 51m

Max. Lifting Moment - 1240kN·m

Max. Boom Length - 42.5m

Max. Jib Length - 8m

Counterweight - 6.4T

Traveling

Engine Model (Emission Standard) - Weichai WP7.300E31 (Euro III)

Max. Traveling Speed - 85km/h

Wheel Formula - 6×4

Max. Gradeability - 41%

Available Districts - RHD

Request for quote: +971525384269

Price: AED1465000
