Features.

Clever Hydraulics
Wire rope reeling can proceed at a faster rate since larger flows guarantee greater efficiency. A closed mode of independently regulated combined motions achieves greater stability when lifting and luffing are done simultaneously without vibration.
A Double Pump The Intelligent Flow Distribution System
With its efficient flow distribution, tiny impact shock, and fast reaction to coupled motions, the electro-hydraulic control system is energy-efficient and eco-friendly. Accurate supervision: Excellent performance inching, min. A single rope can move at 1.2 m/min and min steadily. The slewing sound speed is 0.1°/s, achieving a precise mm level lift. Slewing buffer control integrated: free swing technology, boost buffer, and sequential brakes for seamless start and stop.
Performance-enhancing chassis
To ensure great reliability, 200,000 cycling fatigue tests were conducted on the innovative structural frame.

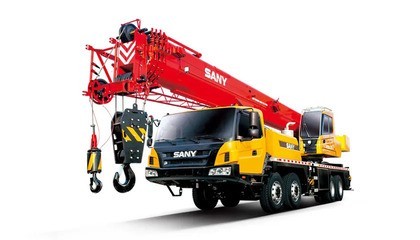

Parameters

Operation

Counterweight - 7.5T

Max. Lifting Capacity - 55T

Max. Boom Length - 45m

Max. Jib Length - 16m

Max. Lifting Height - 61.5m

Max. Lifting Moment - 2009kN·m

Traveling

Available Districts - LHD area

Engine Model (Emission Standard) - DF Cummins ISLe340 30(Euro Ⅲ )

Max. Gradeability - 47%

Max. Traveling Speed - 90km/h

Wheel Formula - 8×4

Request for quote: +971525384269

Price: AED1200000
