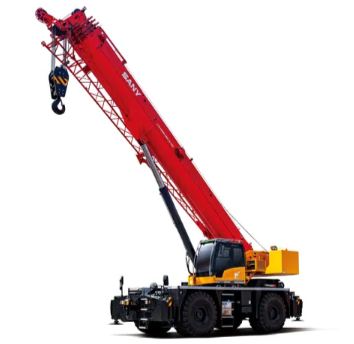

Featuring three hinge points in its luffing system, the SRC800T maintains a compact design suitable for transportation and rough terrain projects. It thrives in extreme environments such as icy zones or desert heat. With a torque converter for fast speed locking, transmission efficiency is significantly improved. The 5ms quick-react transmission system ensures seamless operation, and the joystick can be fine-tuned to mm-level accuracy. A unique shunt and confluence flow system improves smooth inching motions for more reliable control.

Parameters

Operation

• Max. Lifting Capacity- 80T

• Max. Lifting Height- 65.5m

• Max. Lifting Moment- 2734kN·m

• Max. Boom Length= 47.5m

• Max. Jib Length- 17.5m

• Counterweight- 9T

Traveling

• Engine Model (Emission Standard)- DF Cummins QSB6.7 (Stage Ⅲ)

• Max. Traveling Speed- 36km/h

• Wheel Formula- 4×2; 4×4

• Max. Gradeability- 75%

• Available Districts- Outside Europe & USA

Price: 2230000 AED
