AED203,000
Negotiable
Listing Details

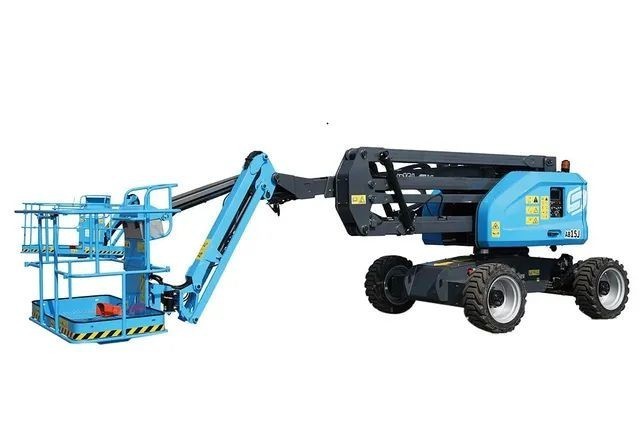

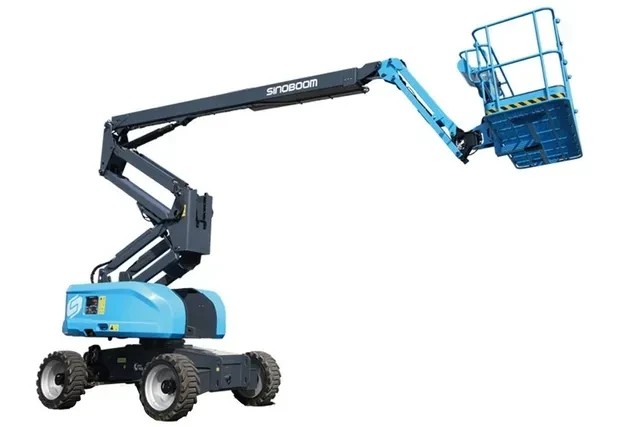

Built to deliver accuracy and reliability, the Sinoboom AB15J articulating boom lift reaches working heights up to 16.7 meters. Its narrow frame and zero tail sweep make it a perfect solution for tight or congested job sites. Operators can raise or lower the platform without repositioning the secondary arm, improving workflow efficiency. The lift features a simplified linkage design and hydraulic leveling system to ensure consistent, trouble-free operation. Equipped with three responsive joysticks using variable proportional controls, it allows precise handling. Suitable for both indoor and outdoor environments, the AB15J is a dependable option for maintenance, construction, and facility applications.
Highlights
-
Ultra-Compact Wheelbase for Tight Spaces
-
Fast, Responsive Height Adjustments
-
Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
-
Narrow width with zero tail sweep
-
Oscillating function
-
7-in display screen
-
4WD× 2WS
-
Proportional control with 3 joysticks
-
Automotive-grade sleeves for all pipes
-
Hydraulic platform leveling
-
Weighing system
Price: AED 203000
Request for quote: +971525384269
