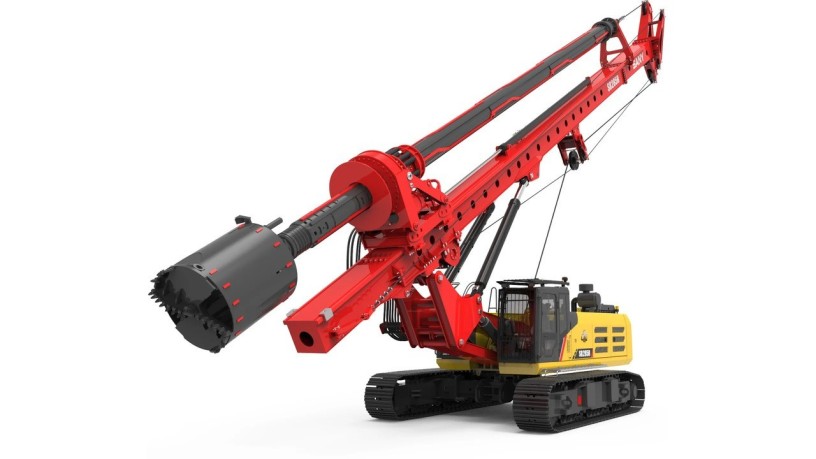

Features.

Practical and Adaptable
Tall verticality of the completed boreholes, high main hoist lifting up and down speed, small diameter and deep borehole construction, and great working efficiency are all examples of their widespread application in civil engineering.

A Unique Chassis
To ensure excellent stability when drilling deep boreholes, a telescopic huge widening chassis with a roller type large diameter slewing bearing is built for rotary drilling rigs.
economical and energy-efficient
solidly powered imported large displacement EFI engine that uses power optimization control technology, dynamically modifies power distribution, responds quickly, uses less gasoline, and uses less energy.

Parameters

Main Chassis

Base Engine - Isuzu 6WG1

Engine Power - 300/1800kW/rpm

Emission Regulation - China Stage Ⅲ

Rotary Drive

Rated Speed - 5~24rpm

Rated Output Torque - 285kN·m

Pile

Max. Pile Diameter - 2300mm

Max. Pile Depth - 94/61m

Crowd System

Crowd Force - 260kN

Stroke - 6000mm

Line Pull - 335kN

Overall Machine

Overall Height - 25425mm

Operating Weight - 100T

Transport Width - 3490mm

Transport Height - 3690mm

Main Winch

Lifting Capacity - 330kN

Max. Line Speed - 72m/min

Rope Diameter - 36mm

Request for quote: +971525384269

Price: AED3328000
