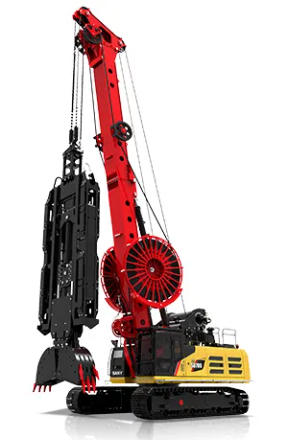

The SANY SR235-S-DW Kelly Guided Grab is designed with a heavyweight working device that delivers high-impact power, suitable for rock strata with pressure up to 10MPa. The bucket operates in only 9 seconds, greatly enhancing the efficiency of soil handling and debris unloading tasks. Its winch, powered by synchronous technology, guarantees the fastest speeds. A real-time gyroscope system automatically adjusts deviations in the gantry push plate, ensuring the groove’s perpendicularity reaches a precision of 1‰.

Parameters

Main Chassis

• Base Engine- 6UZ1

• Engine Power- 257/2000kW/rpm

• Emission Regulation- China Stage III

Slot

• Groove Width- 500-1200mm

• Groove Depth- 35m

Overall Machine

• Overall Height- 22870mm

• Operating Weight- 83T

• Transport Width- 3540mm

• Transport Height- 3660mm

Working Equipment

• Max. Closing Force- 128T

• Weight- 2.5-9T

• Open & Close Bucket Time- 5/8S

Main Winch

• Lifting Capacity- 235kN

• Max. Line Speed- 32m/min

• Wire Rope Diameter- 70mm

Price: 2201000 AED
