Features.

Small-sized design

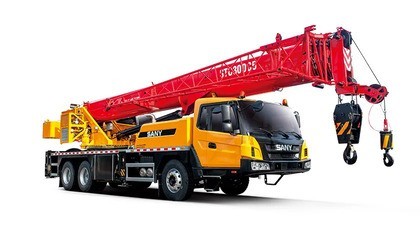

The three-axle cranes' great flexibility and quick transfer allow them to reach a variety of urban or small task locations.

A Double Pump The Intelligent Flow Distribution System
With its efficient flow distribution, tiny impact shock, and fast reaction to coupled motions, the electro-hydraulic control system is energy-efficient and eco-friendly. Accurate supervision: Excellent performance inching, min. A single rope can move at 1.2 m/min and min steadily. The slewing sound speed is 0.1°/s, achieving a precise mm level lift. Slewing buffer control integrated: free swing technology, boost buffer, and sequential brakes for seamless start and stop.
Performance-enhancing chassis
To ensure great reliability, 200,000 cycling fatigue tests were conducted on the innovative structural frame.

Parameters

 Operation

Max. Lifting Capacity - 30T

Max. Lifting Height - 51m

Max. Lifting Moment - 1240kN·m

Max. Boom Length - 42.5m

Max. Jib Length - 8m

Counterweight - 6.4T

Traveling

Engine Model (Emission Standard) - Weichai WP7.300E31 (Euro III)

Max. Traveling Speed - 85km/h

Wheel Formula - 6×4

Max. Gradeability - 41%

Available Districts - RHD

Request for quote: +971525384269

Price: AED1465000
