AED203,000
Negotiable
Listing Details

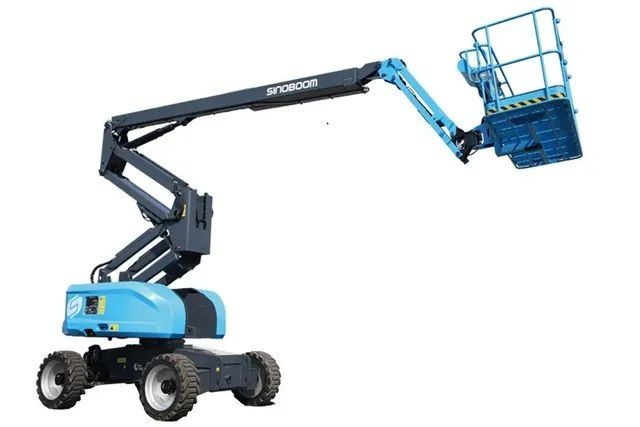

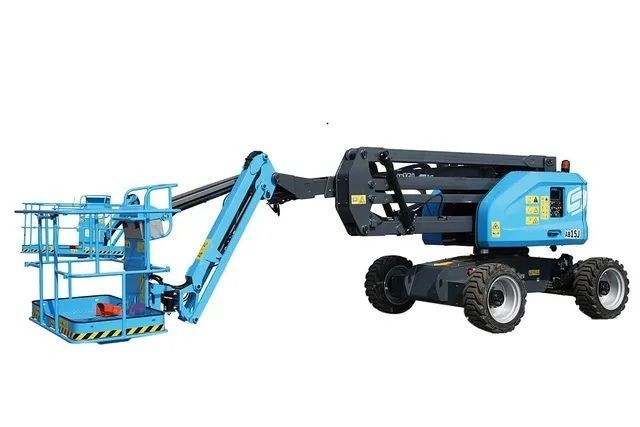

Engineered for performance and control, the Sinoboom AB15J articulating boom lift delivers a reach of up to 16.7 meters. Its slim build and zero tail swing allow for easy access in restricted or narrow areas. The platform can be adjusted vertically without modifying the secondary arm’s position, adding operational flexibility. With a simple linkage structure and hydraulic leveling, it ensures reliable and stable use. Three variable proportional control joysticks enable fine, accurate movements. Designed to perform in both indoor and outdoor settings, the AB15J is ideal for facility maintenance, construction work, and high-access operations.
Highlights
-
Ultra-Compact Wheelbase for Tight Spaces
-
Fast, Responsive Height Adjustments
-
Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
-
Narrow width with zero tail sweep
-
Oscillating function
-
7-in display screen
-
4WD× 2WS
-
Proportional control with 3 joysticks
-
Automotive-grade sleeves for all pipes
-
Hydraulic platform leveling
-
Weighing system
Price: AED 203000
Request for quote: +971525384269
