Features

Successful and Flexible

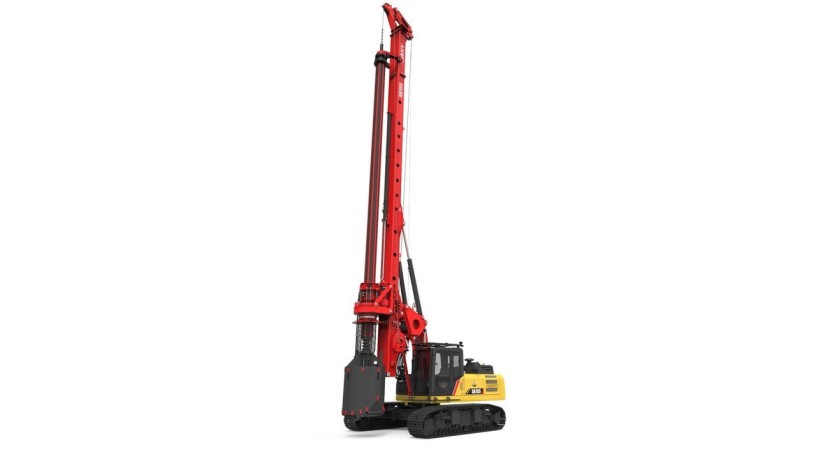

In civil engineering, they are frequently used because of their high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operational efficiency, and small diameter and deep borehole construction.

Different Chassis
Excellent stability is ensured when drilling deep boreholes using rotary drilling rigs equipped with telescopic enormous widening chassis and roller type great diameter slewing bearings.
economical and energy-efficient large displacement EFI engine that is imported and has a reliable power source. It uses real-time power distribution adjustment, power optimization control technology, fast reaction times, improved fuel efficiency, and energy savings.
Superior Reliability
A stronger block ring and better material are used in the sixth-generation Kelly bar, and the mast's box-shaped structure is more resilient to fatigue and torsion.

Parameters

Main Chassis

Base Engine - Mitsubishi D06FRC-TAA

Engine Power - 147/2100kW/rpm

Emission Regulation - China Stage Ⅲ

Rotary Drive

Rated Speed - 5~35rpm

Rated Output Torque - 155kN·m

Pile

Max. Pile Diameter - 1500mm

Max. Pile Depth - 55/44m

Crowd System

Crowd Force - 155kN

Stroke - 4200mm

Line Pull - 160kN

Overall Machine

Overall Height - 18600mm

Operating Weight - 48T

Transport Width - 3100mm

Transport Height - 3265mm

Main Winch

Lifting Capacity - 160kN

Max. Line Speed - 80m/min

Rope Diameter - 26mm

Request for quote: +971525384269

Price: AED1581000
