AED203,000
Negotiable
Listing Details

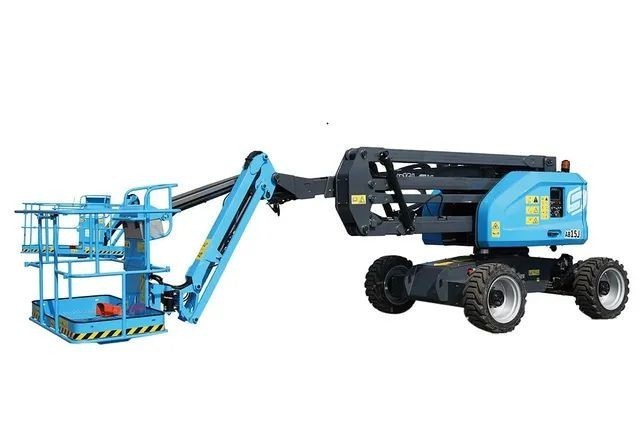

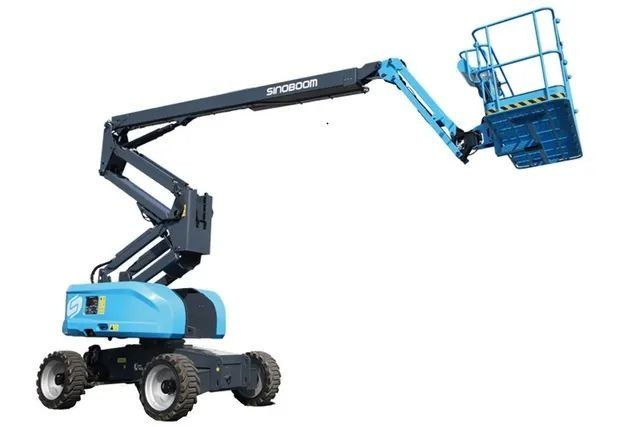

The Sinoboom AB15J is an engine-powered articulating boom lift engineered for high efficiency and accuracy, offering a maximum working height of 16.7 meters. Its compact width and zero tail swing design make it ideal for navigating confined or narrow workspaces. The platform can be lifted or lowered without repositioning the secondary boom, allowing for seamless operation. A straightforward linkage system combined with hydraulic leveling ensures stable and reliable performance. With three variable proportional control joysticks, operators benefit from smooth, precise handling. Suitable for indoor and outdoor environments, the AB15J is a dependable choice for construction, maintenance, and facility management tasks.
Highlights
-
Ultra-Compact Wheelbase for Tight Spaces
-
Fast, Responsive Height Adjustments
-
Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
-
Narrow width with zero tail sweep
-
Oscillating function
-
7-in display screen
-
4WD× 2WS
-
Proportional control with 3 joysticks
-
Automotive-grade sleeves for all pipes
-
Hydraulic platform leveling
-
Weighing system
Price: AED 203000
