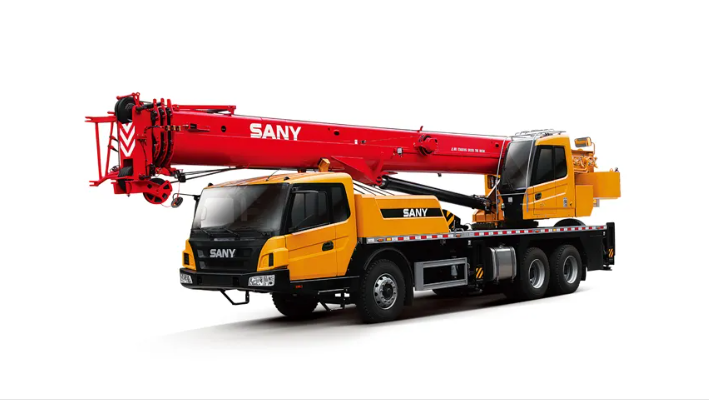

The STC250C4 Truck Crane combines strength and reach in one powerful machine. Delivering up to 25 tons of lifting power, a 35-meter boom, and a 43.5-meter lifting height, it’s the ideal solution for construction, infrastructure, and heavy-duty projects.

• Technical specification

•

• Counterweight - 6.2T

• Max. Lifting Capacity - 25T

• Max. Boom Length - 35m

• Max. Jib Length - 8m

• Max. Lifting Height - 43.5m

• Max. Lifting Moment - 1078kN·m

• Available Districts - LHD & RHD

• Engine Model (Emission Standard) - Weichai WP7.300E31 (Euro III)

• Max. Gradeability - 41%

• Max. Traveling Speed - 85km/h

• Wheel Formula - 6×4

•

Features

• The three-axle cranes are capable of accessing various urban or small jobsites, featuring high flexibility and fast transferring.

• The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level. Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.

• Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.

• CAN BUS system:
  Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and fast-responsive.

• Fault diagnosis system:
  Operating device with intelligent controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.

• The SANY load moment indicator system protects against overloading, over-release, and over-winding.

• Valves and other hydraulic components realize better inching motion performance. Load-sensing and constant-power techniques optimize fuel efficiency.
