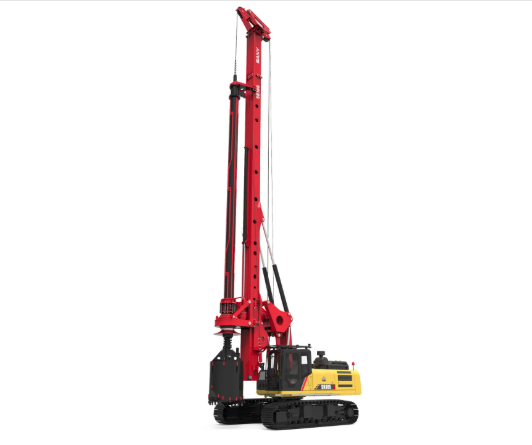

The SR185-C10 Rotary Drilling Rig combines power and innovation to deliver top-notch performance in deep foundation construction.

• Handles large pile diameters up to 1800 mm

• Reaches pile depths of 59/47 m

• Heavy-duty 63-ton operating weight ensures stability and reliability

• Technical specification

•

• Base Engine - ISUZU 6HK1

• Engine Power - 212/2000kW/rpm

• Emission Regulation - China Stage III

• Rated Speed - 5~34rpm

• Rated Output Torque - 190kN·m

• Max. Pile Diameter - 1800mm

• Max. Pile Depth - 59/47m

• Crowd Force - 180kN

• Stroke - 4200mm

• Line Pull - 180kN

• Overall Height - 21040mm

• Operating Weight - 63T

• Transport Width - 3210mm

• Transport Height - 3560mm

• Lifting Capacity - 185kN

• Max. Line Speed - 75m/min

• Rope Diameter - 28mm

•

•

•

•

•

Features

• They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.

• Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.

• Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.

• The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.

• 10-inch HD touch screen, fast response, and more convenient operation.
