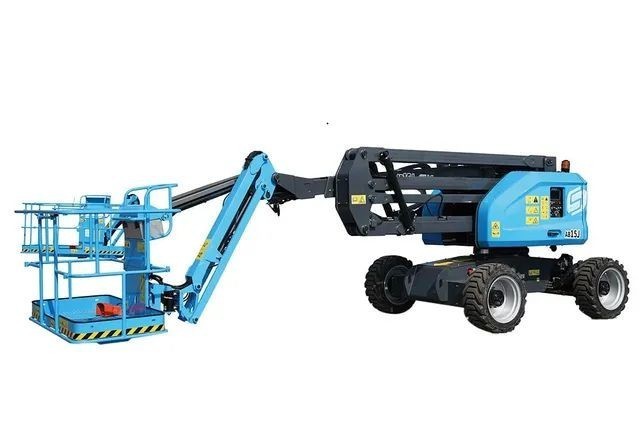

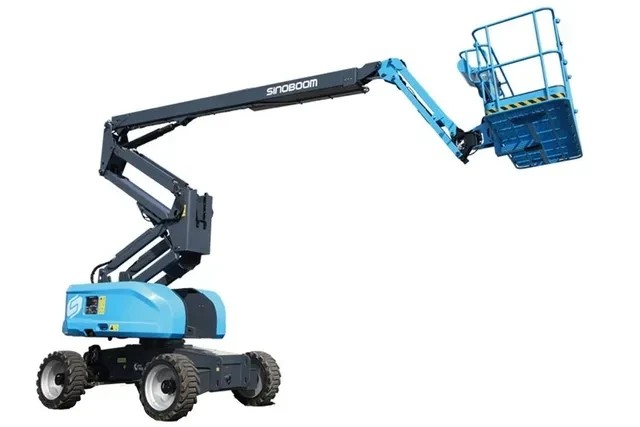

Designed for precision and productivity, the Sinoboom AB15J engine-powered articulating boom lift offers a maximum working height of 16.7 meters. Its slim design and zero tail swing make it a smart choice for navigating tight spaces. Operators can adjust the platform height without changing the position of the secondary arm, enhancing ease of use. Featuring a simplified linkage design and hydraulic leveling, the lift ensures consistent, reliable performance. Three variable proportional control joysticks enable accurate, responsive movements. Built for versatility, the AB15J excels in indoor and outdoor applications across maintenance, construction, and facility management.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces

• Fast, Responsive Height Adjustments

• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep

• Oscillating function

• 7-in display screen

• 4WD× 2WS

• Proportional control with 3 joysticks

• Automotive-grade sleeves for all pipes

• Hydraulic platform leveling

• Weighing system

Price: AED 203000

Request for quote: +971525384269
