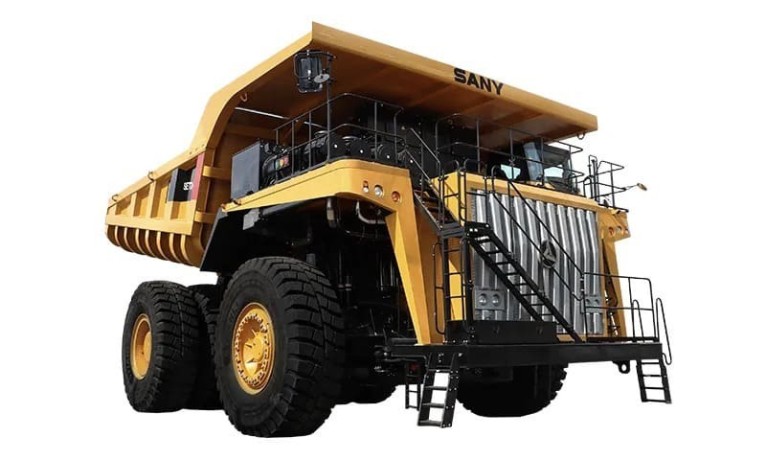

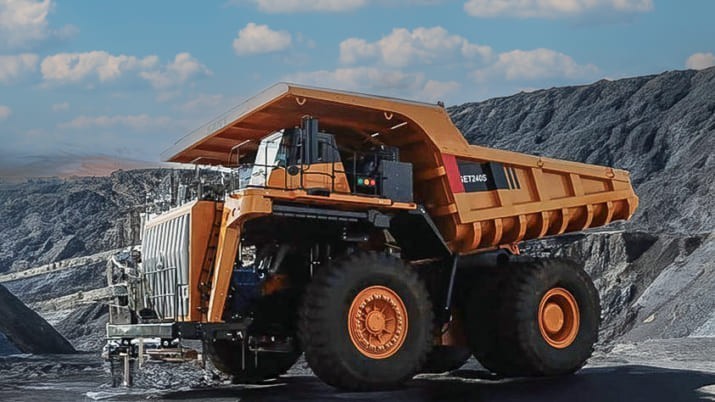

Built for heavy-duty operations, the SANY SET240S offers unmatched reliability and power. The diesel-electric drive technology cuts operating costs while delivering smooth performance. With a focus on durability, it thrives in tough mining environments. Its high payload makes it a top performer for material transport.

Features-

Steering: Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.

Electric Drive System: The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.

Parameters:

Net Weight: 170T
Engine Model: Weichai WP17
Capacity (Struck/Heaped): 105/147m³
Size: 14900*8200*7050mm
Left/Right Hand Drive: Left/Right
Total Power: ≥2091kW
Displacement: 16.72L
Maximum Torque: 3000NM
Max. Gradeability: 30%
Min. Turning Radius: 14500mm
Number/Type of Cylinders: 8/V shape,turbocharged
Lubrication System: Automatic lubrication system
Automatic/Manual: Automatic
Tyre: 40.00R57
Load Weight: 220T

Request for quote: +971525384269
